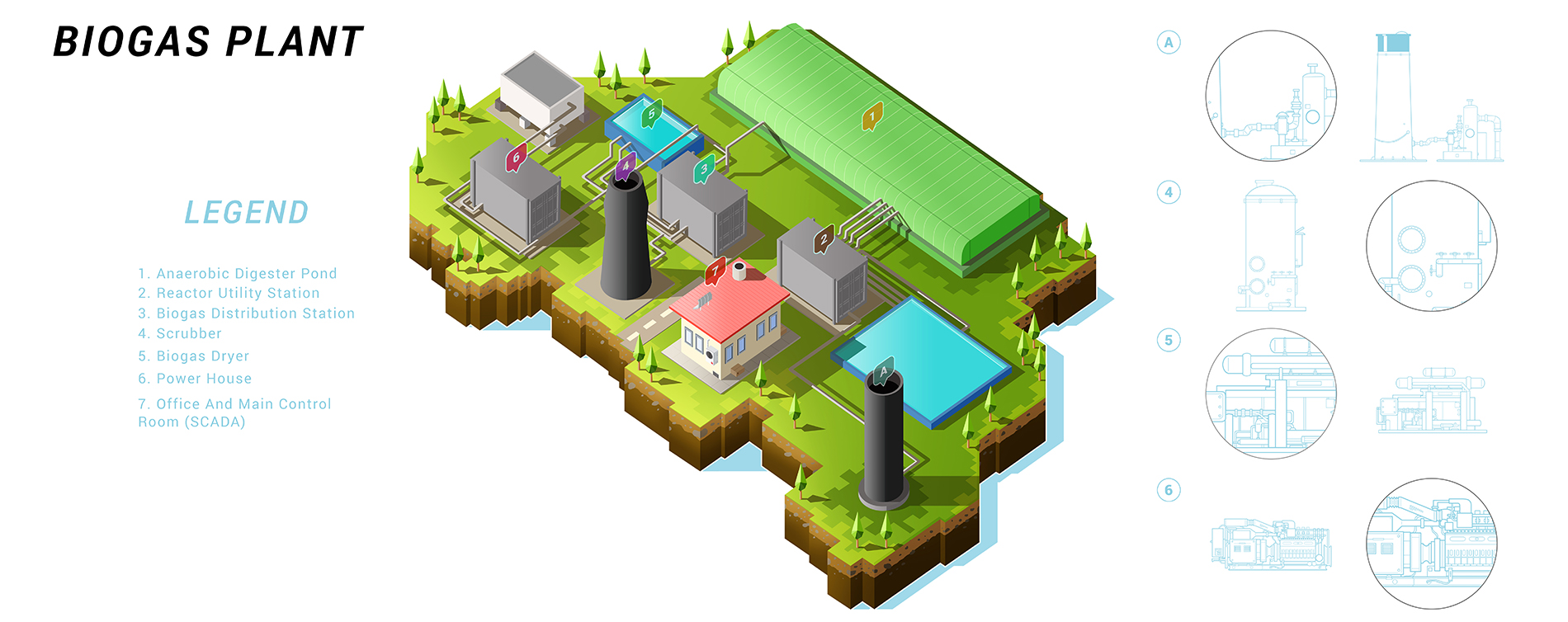

Bio Gas Power Plant Solutions

Reactor Utility Station

Instrumentation System
- pH and temperature
- Flow transmitter
- Pressure transmitter
- Pump and blower
Control System
- Reliable and modular PLC and VSD system
Function
- Measuring the quality of materials in/out the digester pond
- Controlling chemical process in the digester pond
- Ensuring process in digester pond to conform with required (quality) standard

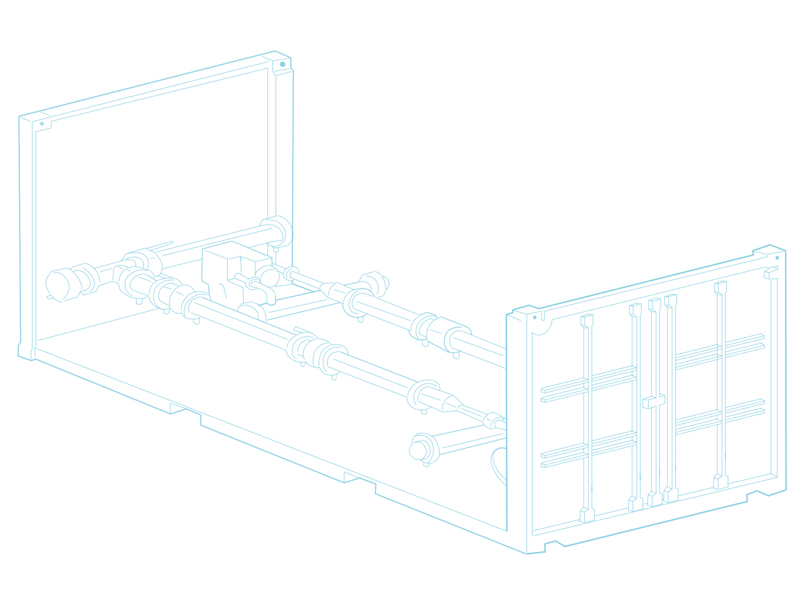

Biogas Distribution System

Instrumentation System
- Biogas Analyzer (CH4, CO2, H2S, O2)
- Flow transmitter
- Pressure transmitter
- Pressure transmitter
Control System
- Reliable and modular PLC and VSD system
Function
- Ensuring clean materials fed maintain the performance of Gas Engine
- Integrating process units (e.g. Scrubber, Biogas Dryer, Gas Engine)
- Controlling process parameters and variables to meet setpoints / required operating conditions of each unit
- Measuring the amount and quality of both produced and wasted biogas

Automatic Control System Biogas Power Plants

- Human Machine Interface (HMI)
- Operator Workstation
- Engineering Workstation
Function
- Presenting flexible, dynamic, and user-friendly interface
- Facilitate the operation of the entire system, while still providing an economical solution
- Presenting result reports and record / historical of the process monitored
- Set the control systems with manual, semi-automatic, or fully automatic mode

Control View

Operators can monitor remotely and can be integrated to monitor in several plant.

Processing

One of POME wastewater treatment method is by using anaerobic digesters that utilize a large pool. This processing is assisted by the bacteria that converts the substrate to produce methane gas. The methane gas through filtration and drying process to be eligible as the fuel of biogas power plants.

Benefits

- Removal of BOD in wastewater until 80-90%.

- Produce energy.
